EPP 5.0 - clearance unit

Using the EPP 5.0A unit

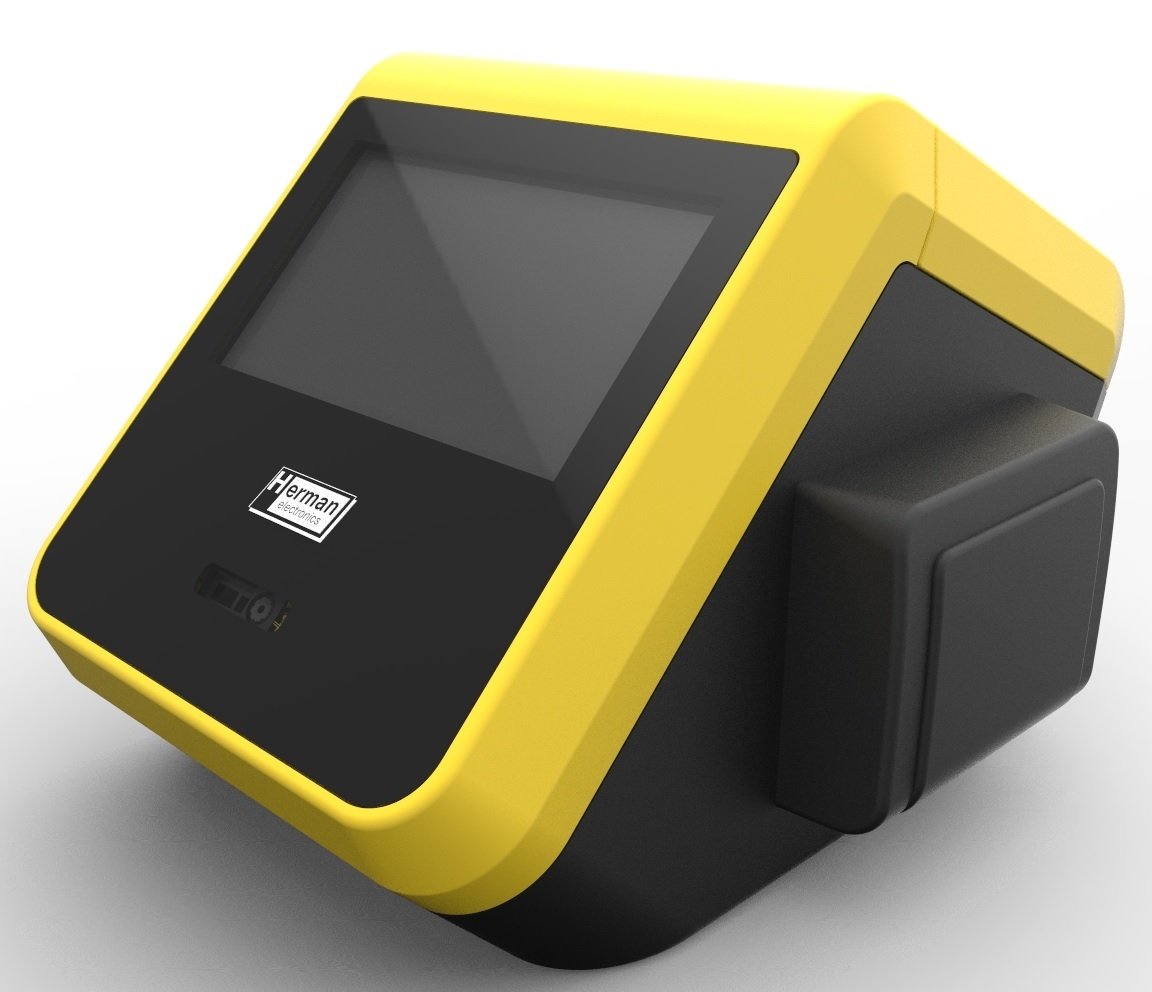

TheEPP 5.0x passenger check-in unit is a general passenger check-in terminal (validator on the fly) or customer check-in unit and can also be used in other applications involving payment or validation (not only in transport). Thanks to the control via USB connection (min. USB 2.0), it can be connected to any computer - our EPC 4.0A, EPC 4.0B, EPC 4.0C and EPC 5.  0 units or directly to a PC or other device with USB interface. The composition of the unit can be chosen by the customer - from a simple printer on thermal paper EPP 5.0 A through the possibility of a payment terminal to a complex system including check-in and even with a 1D (barcode) or 2D (QR code) reader and a customer display - i.e. EPP 5.0A LQB. The code reader then also allows the collection of images from the camera chip. The bank card reader of the EPP 5.0A B unit (B for bank card) is certified for the use of contactless bank payments together with the EPIS 5.0A software.

Basic parameters

The EPP 5.0A clearance unit includes in the mechanical set:

Thermal ticket printer

• Thermal ticket printer controlled via USB interface
• The printer lifetime is 150 million pulses,
• print head life is 150 km,
• lifetime of the ticket cutter is 1.5 million cuts,
• paper roll up to 80 mm.

Bank card reader

The bank card reader is according to ISO 14443A standard with the ability to detect non-bank cards (Mifare and Mifare Desfire) - the type depends on the customer's requirements (different types can be supplied) with direct connection to the PP and to the acquirer's clearing centre. The reader allows to manage tokens for further processing in BOS or clearing centres.

Professional QR code reader

• Professional QR code reader with the possibility of displaying the read code to the driver in order to refine the location of the reader (the driver can see the passenger's movements on the terminal),

Customer display

• 4.3" customer display controlled from the PP by a converter,
• Highly illuminated design
• 480 x 272 dots

Other technical parameters

• possibility of generating audible signals for passenger indication
• Operating temperature - -20˚C to +50˚C
• Supply voltage - +24V in the range according to ČSN 33 2000-4-41, ČSN EN 50155, ČSN 30 4002, ČSN EN 60950.
• Power supply current of the full version without printing at 24V - 160 mA
• Power supply current for normal printing at 24V - 1.6 A
• Supply current for "black" printing at 24V - 10 A
• Supply current for "black" printing at 17|V - 14 A

The EPP 5.0Ax check-in unit is connected with only one 8-core cable to the EPC 5.0Ax or EPC 4.0x on-board computer control unit and has a separate +24V supply voltage.

Code designation - the letter after the type name expresses the added function:

• A - is the development version of the unit.
• Q - QR reader with camera
• L - customer LCD display
• B - bank and non-bank card reader - includes Mifare and Desfire reader
• D - Desfire and Mifare
• - printer is included in the base, no letter needs to be entered
• abbreviation - without abbreviation - glass covering the QR reader and display area, JMK - with customer description (e.g. JMK for IDS JMK)

Mechanical dimensions of the EPP 5.0 check-in unit

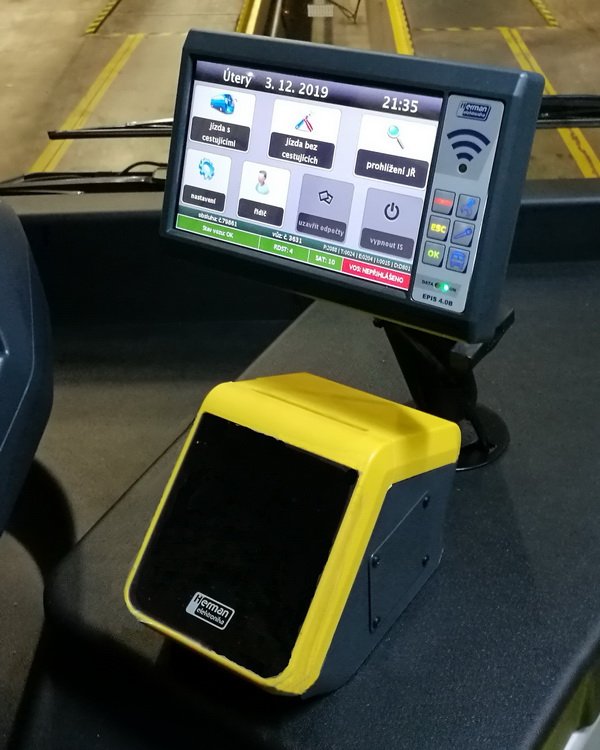

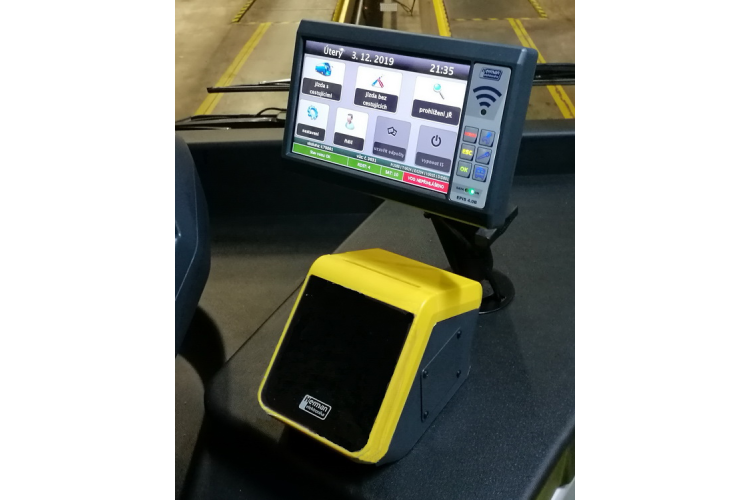

Thanks to the small dimensions of the customer check-in unit, it can be easily placed in the vehicle (when installing it in the vehicle, the opening angle of the top cover for inserting the paper disc must be considered):
